Channel Steel
Standard
- U.S. Standard
- British Standard
- Australian Standard
- European Standard
Model
- A36
- A92
- A572Gr50
- S275JR
- S355JR
- S355J2
- S355NL
Category：

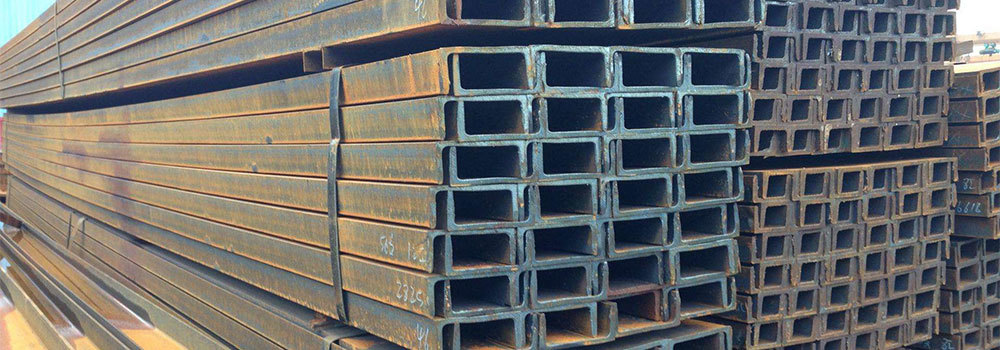

Channel Steel
Channel Steel
（C/MC）U-bar
Dimensions and Sectional Properties（1）ASTMA6/A6M-14
| Designation Designation Bezeichnung (imperial) | Designation Designation Bezeichnung (metric) | Unit Weight (kg/m) | Dimensions Abmessungen (mm) | ||||
| G | H | B | tw | t f | d | ||
| C 3 x 4.1 | C 75 x 6.1* | 6,1 | 76 | 35 | 4,3 | 6,9 | 38 |
| C 3 x 5 | C 75 x 7.4* | 7,4 | 76 | 37 | 6,6 | 6,9 | 38 |
| C 3 x 6 | C 75 x 8.9* | 8,9 | 76 | 40 | 9,0 | 6,9 | 38 |
| C 4 x 5.4 | C 100 x 8* | 8,0 | 102 | 40 | 4,7 | 7,5 | 66 |
| C 4 x 7.25 | C 100 x 10.8* | 10,8 | 102 | 43 | 8,2 | 7,5 | 60 |
| C 5 x 6.7 | C 130 x 10.4* | 10,4 | 127 | 44 | 4,8 | 8,1 | 83 |
| C 5 x 9 | C 130 x 13* | 13,0 | 127 | 47 | 8,3 | 8,1 | 86 |
| C 6 x 8.2 | C 150 x 12.2* | 12,2 | 152 | 48 | 5,1 | 8,7 | 107 |
| C 6 x 10.5 | C 150 x 15.6* | 15,6 | 152 | 51 | 8,0 | 8,7 | 107 |
| C 6 x 13 | C 150 x 19.3* | 19,3 | 152 | 54 | 11,1 | 8,7 | 105 |
| C 7 x 9.8 | C 180 x 14.6* | 14,6 | 178 | 53 | 5,3 | 9,3 | 130 |
| C 7 x 12.25 | C 180 x 18.2* | 18,2 | 178 | 55 | 8,0 | 9,3 | 130 |
| C 7 x 14.75 | C 180 x 22* | 22,0 | 178 | 58 | 10,6 | 9,3 | 125 |
| C 8 x 11.5 | C 200 x 17.1* | 17,1 | 203 | 57 | 5,6 | 9,9 | 156 |
| C 8 x 13.75 | C 200 x 20.5* | 20,5 | 203 | 59 | 7,7 | 9,9 | 156 |
| C 8 x 18.75 | C 200 x 27.9* | 27,9 | 203 | 64 | 12,4 | 9,9 | 156 |
| C 9 x 13.4 | C 230 x 19.9* | 19,9 | 229 | 61 | 5,9 | 10,5 | 177 |
| C 9 x 15 | C 230 x 22* | 22,0 | 229 | 63 | 7,2 | 10,5 | 177 |
| C 9 x 20 | C 230 x 30* | 30,0 | 229 | 67 | 11,4 | 10,5 | 173 |
| C 10 x 15.3 | C 250 x 22.8* | 22,8 | 254 | 65 | 6,1 | 11,1 | 203 |
| C 10 x 20 | C 250 x 30* | 30,0 | 254 | 69 | 9,6 | 11,1 | 203 |
| C 10 x 25 | C 250 x 37* | 37,0 | 254 | 73 | 13,4 | 11,1 | 203 |
| C 10 x 30 | C 250 x 45* | 45,0 | 254 | 76 | 17,1 | 11,1 | 203 |
| C 12 x 20.7 | C 310 x 30.8* | 30,8 | 305 | 74 | 7,2 | 12,7 | 248 |
| C 12 x 25 | C 310 x 37* | 37,0 | 305 | 77 | 9,8 | 12,7 | 248 |
| C 12 x 30 | C 310 x 45* | 45,0 | 305 | 80 | 13,0 | 12,7 | 248 |
| C 15 x 33.9 | C 380 x 50.4* | 50,4 | 381 | 86 | 10,2 | 16,5 | 308 |
| C 15 x 40 | C 380 x 60* | 60,0 | 381 | 89 | 13,2 | 16,5 | 308 |
| C 15 x 50 | C 380 x 74* | 74,0 | 381 | 94 | 18,2 | 16,5 | 308 |
