Channel Steel
Standard
- U.S. Standard
- British Standard
- Australian Standard
- European Standard
Model
- A36
- A92
- A572Gr50
- S275JR
- S355JR
- S355J2
- S355NL
Category：

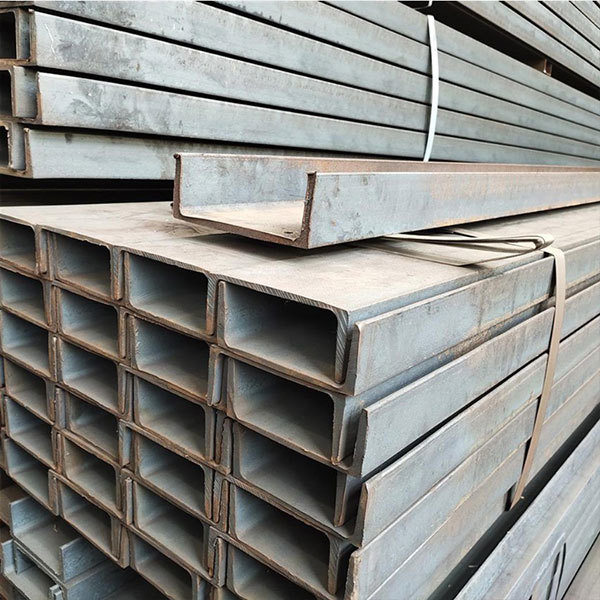

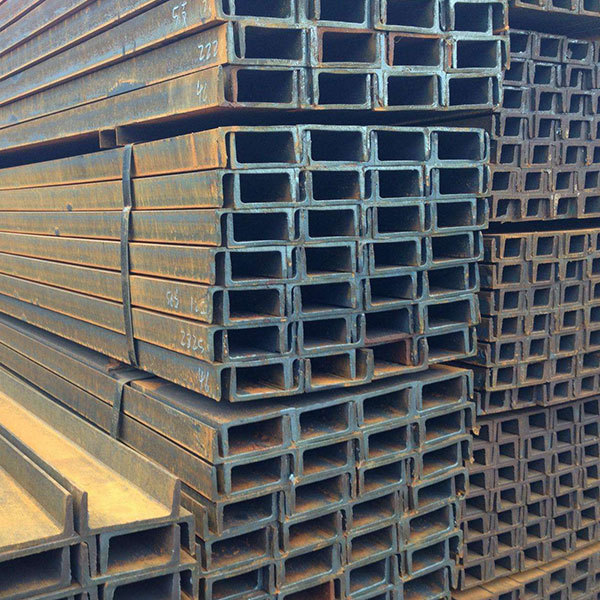

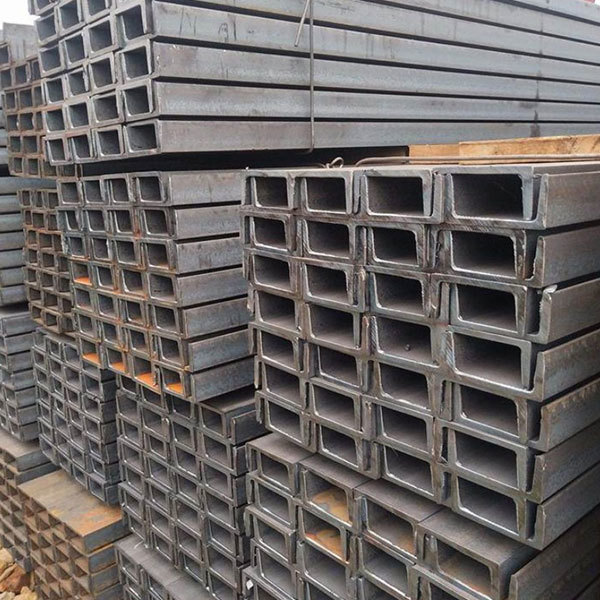

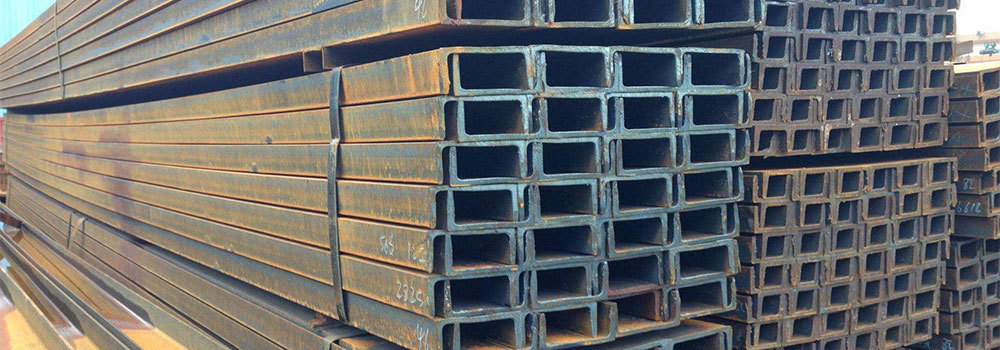

Channel Steel
Channel Steel
（PFC）U-bar
Dimensions and Sectional Properties（1）EN10279:2000 EN10163-3:2004
| Designation Designation Bezeichnung (imperial) | Unit Weight (kg/m) | Dimensions Abmessungen (mm) | ||||
| G | H | B | tw | t f | r | |
| PFC 100 x 50 x 10* | 10,2 | 100 | 50 | 5,0 | 8,5 | 9 |
| PFC 125 x 65 x 15* | 14,8 | 125 | 65 | 5,5 | 9,5 | 12 |
| PFC 150 x 75 x 18* | 17,9 | 150 | 75 | 5,5 | 10,0 | 12 |
| PFC 150 x 90 x 24* | 23,9 | 150 | 90 | 6,5 | 12,0 | 12 |
| PFC 180 x 75 x 20* | 20,3 | 180 | 75 | 6,0 | 10,5 | 12 |
| PFC 180 x 90 x 26* | 26,1 | 180 | 90 | 6,5 | 12,5 | 12 |
| PFC 200 x 75 x 23* | 23,4 | 200 | 75 | 6,0 | 12,5 | 12 |
| PFC 200 x 90 x 30* | 29,7 | 200 | 90 | 7,0 | 14,0 | 12 |
| PFC 230 x 75 x 26* | 25,7 | 230 | 75 | 6,5 | 12,5 | 12 |
| PFC 230 x 90 x 32* | 32,2 | 230 | 90 | 7,5 | 14,0 | 12 |
| PFC 260 x 75 x 28* | 27,6 | 260 | 75 | 7,0 | 12,0 | 12 |
| PFC 260 x 90 x 35* | 34,8 | 260 | 90 | 8,0 | 14,0 | 12 |
| PFC 300 x 90 x 41* | 41,4 | 300 | 90 | 9,0 | 15,5 | 12 |
| PFC 300 x 100 x 46* | 45,5 | 300 | 100 | 9,0 | 16,5 | 15 |
| PFC 380 x 100 x 54* | 54,0 | 380 | 100 | 9,5 | 17,5 | 15 |
| PFC 430 x 100 x 64* | 64,4 | 430 | 100 | 11,0 | 19,0 | 15 |

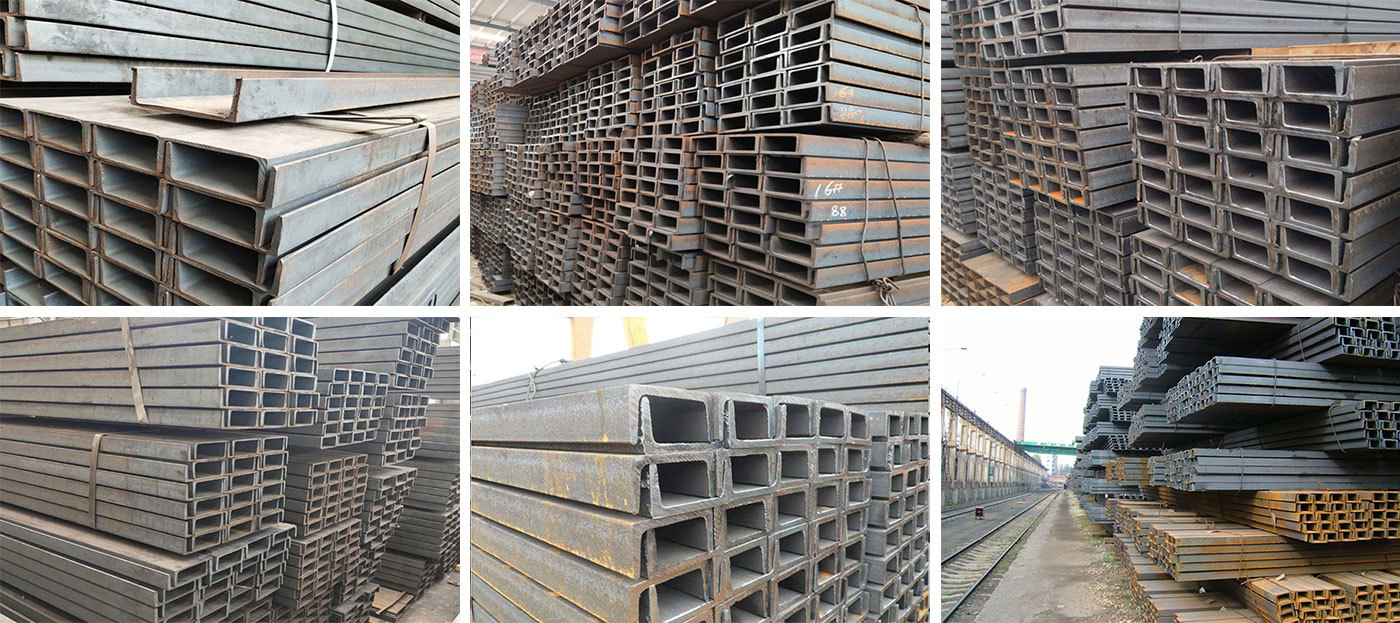

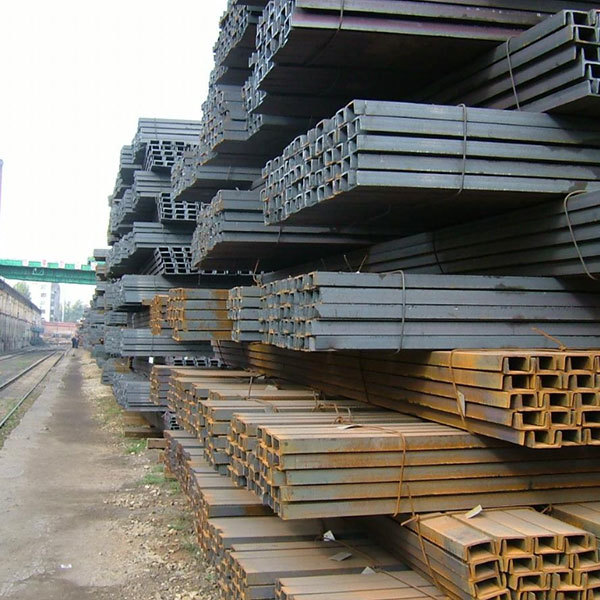

PACKING AND SHIPPING
