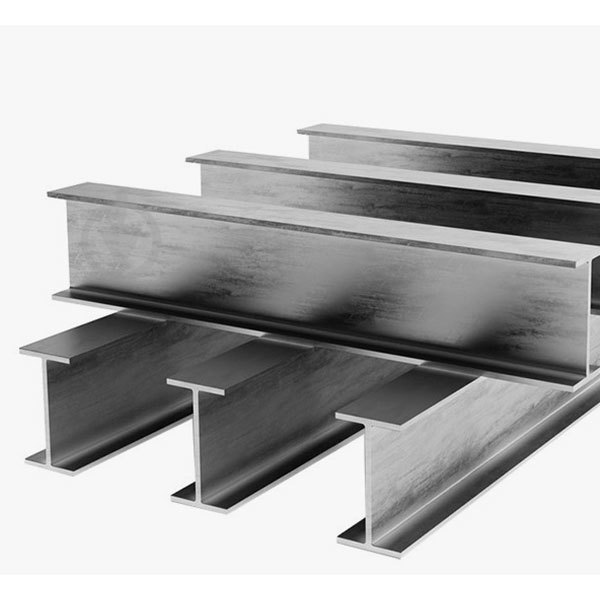

H-beam

Standard

U.S. Standard
British Standard
Australian Standard
European Standard

Model

A36
A92
A572Gr50
S275JR
S355JR
S355J2
S355NL

Category：

H-steel

Tel:+86-18365739866

WhatsApp:+86-18365739866

Email:Luna@tonghuisteel.com

H Section EN10025

Dimensions and Sectional Properties（1）British Standard(BS)-Universal Beam BS4:2005 EN10034:1997 EN10163-3：2004

Designation		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
		W	H	B	t 1	t2	r	A
UB127*76	13	13	127.0	76	4	7.6	7.6	16.52
UB152*89	16	16	152.4	88.7	4.5	7.7	7.6	20.32
UB178*102	19	19	177.8	101.2	4.8	7.9	7.6	24.26
UB203 x 102	23	23.1	203.2	101.8	5.4	9.3	7.6	29.40
UB203 x 133	25	25.1	203.2	133.2	5.7	7.8	7.6	31.97
	30	30.0	206.8	133.9	6.4	9.6	7.6	38.21
UB254 x 102	22	22.0	254.0	101.6	5.7	6.8	7.6	28.02
	25	25.2	257.2	101.9	6.0	8.4	7.6	32.04
	28	28.3	260.4	102.2	6.3	10.0	7.6	36.08
UB254 x 146	31	31.1	251.4	146.1	6.0	8.6	7.6	39.68
	37	37.0	256.0	146.4	6.3	10.9	7.6	47.17
	43	43.0	259.6	147.3	7.2	12.7	7.6	54.77
UB305 x 102	25	24.8	305.1	101.6	5.8	7.0	7.6	31.60
	28	28.2	308.7	101.8	6.0	8.8	7.6	35.88
	33	32.8	312.7	102.4	6.6	10.8	7.6	41.83
UB305 x 127	37	37.0	304,4	123,4	7,1	10,7	8.9	47,18
	42	41.9	307,2	124,3	8.0	12,1	8.9	53,40
	48	48.1	311.0	125,3	9.0	14.0	8.9	61,23

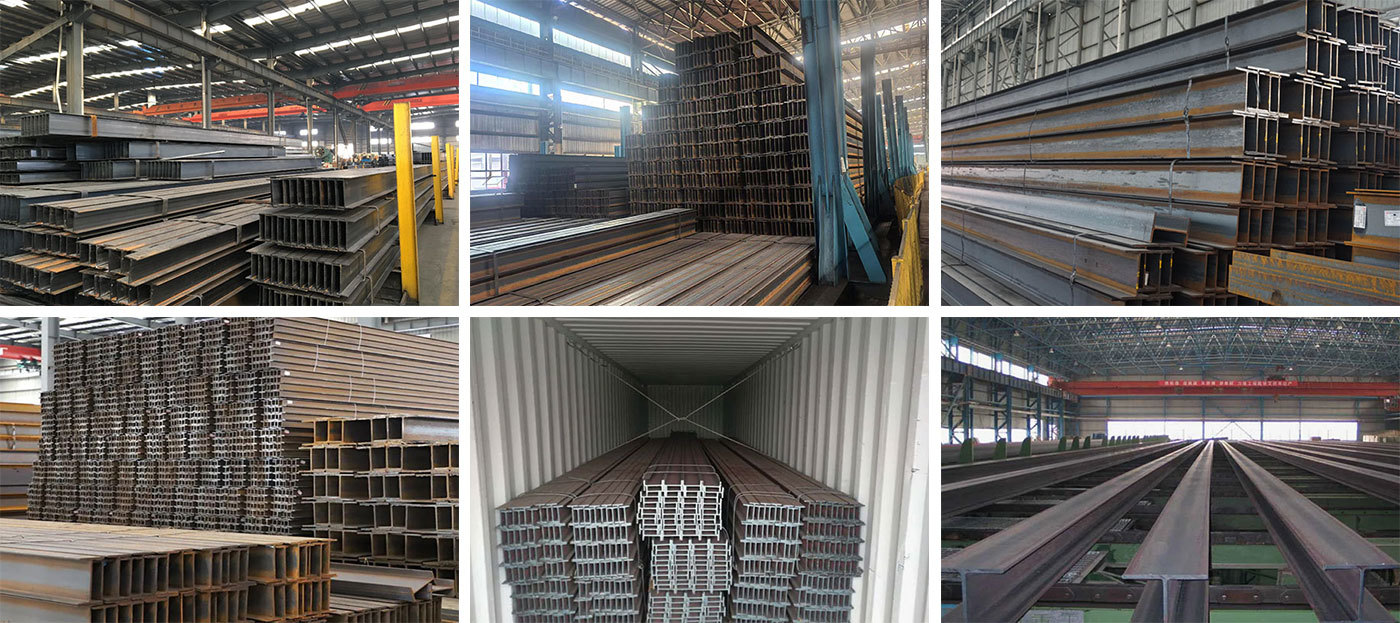

PACKING AND SHIPPING
